Kubernetes for Developers #26: Managing Container CPU, Memory Requests and Limits

By default, Kubernetes doesn’t put any restrictions on using CPU and Memory for the Pod. It means, a single container in the pod can consume entire node resources. However, this makes other CPU intensive containers will slow down, Kubernetes services may become unresponsive and worker node may go down with NotReady state in worst case scenario.

So, setting up CPU and Memory limits for the containers in the Pod will helps us that only fair share of resources will be allocated by Kubernetes Cluster and will not affect other Pods performance in the Node.

Kubernetes uses following YAML request and limit structure to control container CPU, Memory resources
      resources:
        requests:
          cpu: 100m
          memory: 50Mi
        limits:
          cpu: 150m
          memory: 100Mi

requests:
  • This is the place to specify how much CPU and Memory required for a container. Kubernetes will only schedule it on a node that can give the specified request resources.
limits:

  • This is the place to specify maximum CPU and Memory allowed to use by a single container. So, the running container is not allowed to use more than specified limits.
  • limits can never be lower than the requests. If you try this, Kubernetes will throw an error and won’t let you run the container
  • CPU is a “compressible” resource. It means when a container start hitting max CPU limit, it won’t be terminated from the node, but it will throttle it and gives worse performance.
  • Memory is a “non-compressible” resource. It means when a container start hitting max Memory limit, it will be terminated from the node(Out of Memory killed).

requests and limits are on a per-container basis. It means, we must specify for each container in the Pod. The pod’s resource requests and limits are the sum of the requests and limits of all its containers.


Kubernetes CPU Resource Units

Limits and requests for CPU resources measured in cpu units. One cpu in Kubernetes equivalent to
1 AWS vCPU (or) 1 GCP Core (or) 1 Azure vCore (or) 1 Hyperthread on a bare-metal processors.

CPU resources can be specified in both fractional and milli cores. i.e., 1 Core = 1000 milli cores

Ex: 0.2 equivalent to 200m

Kubernetes Memory Resource Units

Limits and requests for Memory are measured in bytes. So, it can be used as plain integer number or suffixing with Mi, Pi, Ti, Gi, Mi, Ki

For example, check the below configuration where container has a request of (0.5 cpu and 200Mi bytes of memory) and limit of (1 cpu and 400Mi bytes of memory)

      resources:
        requests:
          cpu: 500m
          memory: 200Mi
        limits:
          cpu: 1000m
          memory: 400Mi

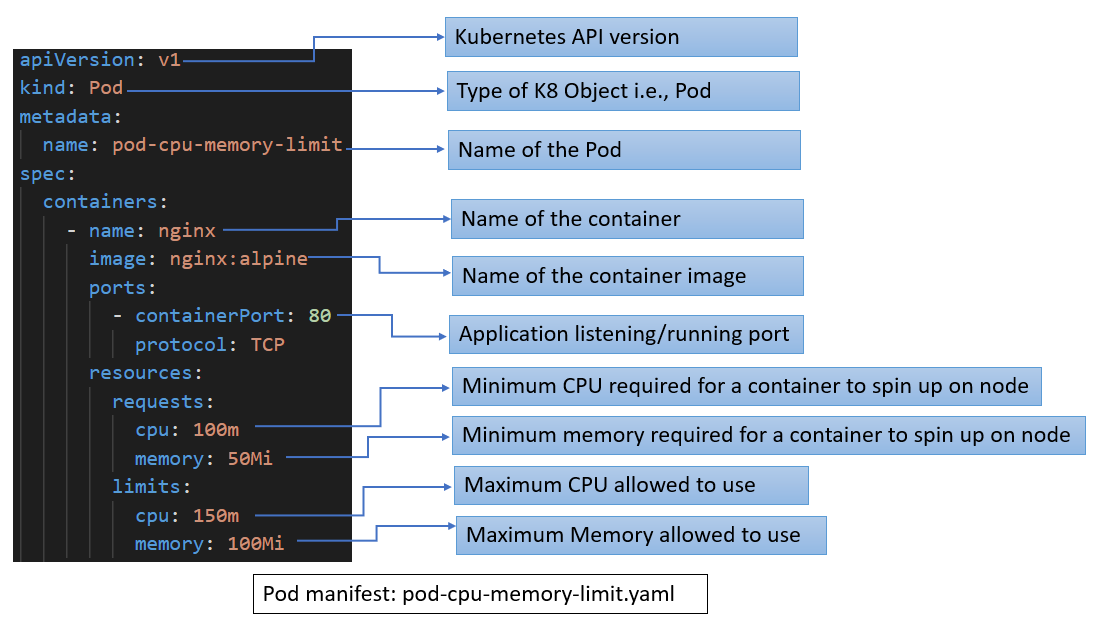

create following yaml content and save as "pod-cpu-memory-limit.yaml"
apiVersion: v1
kind: Pod
metadata:
  name: pod-cpu-memory-limit
spec:
  containers:
    - name: nginx
      image: nginx:alpine
      ports:
        - containerPort: 80
          protocol: TCP
      resources:
        requests:
          cpu: 100m
          memory: 50Mi
        limits:
          cpu: 150m
          memory: 100Mi
    - name: alpine
      image: alpine
      command:
        [
        "sh",
        "-c",
        "while true; do echo date;sleep 10;done"
        ]
      resources:
        requests:
          cpu: 50m
          memory: 30Mi
        limits:
          cpu: 60m
          memory: 50Mi



The above pod has two containers.
  • First container (i.e. nginx) has request of 100m or 0.1 CPU and 50Mi memory, max limit of 150m CPU and 100Mi
  • Second container (i.e. alpine) has request of 50m CPU and 30Mi memory, max limit of 60m CPU and 50Mi

So, Pod has total request of 150m CPU and 80Mi of memory, total max limit of 210m CPU and 150Mi of memory

run following query to get node capacity(i.e. total cpu and memory of the node) and allocatable(i.e. total resources allocatable for pods by the scheduler)
// check all worker nodes capacity
$ kubectl describe nodes
Capacity:
  cpu:                4
  memory:             7118488Ki
Allocatable:
  cpu:                4
  memory:             7016088Ki

// create pod
$ kubectl apply -f pod-cpu-memory-limit.yaml
pod/pod-cpu-memory-limit created

// display pods
$ kubectl get po
NAME                    READY   STATUS      RESTARTS
pod-cpu-memory-limit    2/2     Running     0

// view CPU and Memory limits for all containers in the Pod
$ kubectl describe pod/pod-cpu-memory-limit
Name:         pod-cpu-memory-limit
Namespace:    default
Containers:
  nginx:
    Image:          nginx:alpine
    Limits:
      cpu:     150m
      memory:  100Mi
    Requests:
      cpu:        100m
      memory:     50Mi
  alpine:
    Image:         alpine
    Limits:
      cpu:     60m
      memory:  50Mi
    Requests:
      cpu:        50m
      memory:     30Mi


// Pod will be in Pending state when we specify requests are bigger than node capacity

// Create Pod using imperative style
$ kubectl run requests-bigger-pod --image=busybox--restart Never \
--requests='cpu=8000m,memory=200Mi'

// display pods
$ kubectl get po
NAME                    READY    STATUS      RESTARTS
requests-bigger-pod      0/1     Pending       0

// Pod in pending status due to insufficient CPU. So, check Pod details
$ kubectl describe pod/requests-bigger-pod
Name:         requests-bigger-pod
Namespace:    default
Events:
  Type     Reason            Age   From               Message
  ----     ------            ----  ----               -------
  Warning  FailedScheduling  28s   default-scheduler  0/1 nodes are available: 1 Insufficient cpu.



// Pod created successfully when limits are bigger than node capacity

// Create Pod using imperative style
$ kubectl run limits-bigger-pod --image=busybox --restart Never \
--requests='cpu=100m,memory=50Mi' \
--limits='cpu=8000m,memory=200Mi'

// If you specify limits but do not specify requests then k8 creates requests which is equal to limits
$ kubectl run no-requests-pod --image=busybox --restart Never \
--limits='cpu=100m,memory=50Mi'

// view CPU and Memory limits
$ kubectl describe pod/no-requests-pod
Name:         no-requests-pod
Namespace:    default
Containers:
  busybox:
    Image:          nginx:alpine
    Limits:
      cpu:     100m
      memory:  50Mi
    Requests:
      cpu:        100m
      memory:     50Mi


Kubernetes for Developers Journey.
Happy Coding :)
