Kubernetes for Developers #25: PersistentVolume and PersistentVolumeClaim in-detail

In the previous article (Kubernetes for Developers #24: Kubernetes Volume hostPath in-detail), we discussed about hostPath volume for persisting container data in the worker node file system. However, this data is available only to the pods which are scheduled on the same worker node. This is not a feasible solution for multi-node cluster.

This problem can be solved by using external storage volumes like awsElasticBlockStore, azureDisk, GCE PD, nfs etc. However, developer must have knowledge on the network storage infrastructure details to use in the pod definition.

It means, when the developer wants to use awsEBS volume in the Pod, the developer should know the details of EBS ID and file type. If there is a change in the storage details, developer must make changes in all the pod definitions.

Kubernetes solves the above problem by using PersistentVolume and PersistentVolumeClaim. It decouples underlying storage details from the application pod definitions. Developers don’t have to know the underlaying storage infrastructure which is being used. It is more of cluster administrator responsibility.

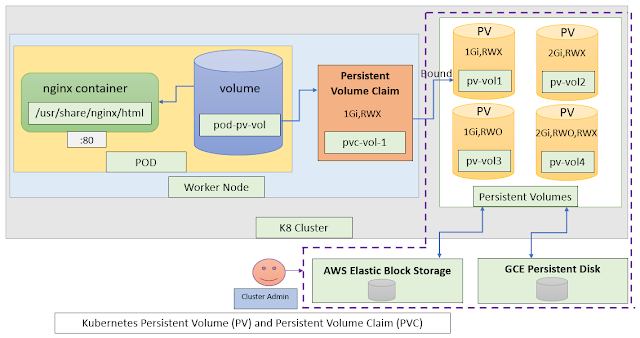

As per diagram,
  • PersistentVolumes(PV) are cluster-level resources like worker nodes. It not belonging to any namespace.
  • PersistenVolumeClaims(PVC) can be created in a specific namespace only and it can be used by pods within same namespace only.
  • Cluster Administrator sets up cloud storage infrastructure i.e., AWS Elastic Block Storage and GCE Persistent Disk as per the need.
  • Cluster Administrator creates Kubernetes PersistentVolumes (PV) with different size and access modes by referring AWS EBS/GCE PD as per application requirements.
  • Whenever pod requires persistent storage, Kubernetes Developer creates PersistentVolumeClaim (PVC) with minimum size and access mode, and Kubernetes finds an adequate Persistent Volume with same size and access mode and binds volume (PV) to the claim (PVC).
  • Pod refers PersistentVolumeClaim (PVC) as volume whenever it is required.
  • Once PersistentVolume is bound to PVC, it cannot be used by others until it is released (i.e., we must delete PVC to reuse PV by others).
  • Kubernetes Developer don’t have to know the underlaying storage details. They just have to create PersistentVolumeClaim (PVC) whenever pod requires persistent storage.
Access Modes

The following access modes are supported by PersistentVolume(PV)
  • ReadWriteOnce (RWO): Only single worker node can mount the volume for reading and writing at the same time.
  • ReadOnlyMany (ROX): Multiple worker nodes can mount the volume for reading at the same time.
  • ReadWriteMany (RWX): Multiple worker nodes can mount the volume for reading and writing at the same time.

Reclaim Policy

Reclaim Policy tell us what happens to PersistentVolume(PV) when the PersistentVolumeClaim(PVC) is deleted.
  • Delete: It deletes volume contents and makes the volume available to be claimed again as soon as PVC is deleted.
  • Retain: PersistentVolume(PV) contents will be persisted after PVC is deleted and it cannot be re-used until Cluster Administrator reclaim the volume manually.
In general, Cluster Administrator creates multiple PersistantVolumes(PV) by using any one of cloud storages i.e. AWS EBS or GCE PD
// Ex: creating aws EBS from cli
$ aws ec2 create-volume \
  --availability-zone=eu-east-1a
  --size=10 --volume-type=gp2 ebs-data-id

Cluster Administrator creates following PV by using ebs-id
apiVersion: v1
kind: PersistentVolume
metadata:
  name: pv-vol1
spec:
  capacity:
    storage: 10Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  storageClassName: ""
  awsElasticBlockStore:
    volumeID: ebs-data-id
    fsType: ext4


For local testing, lets use hostPath PersistentVolume. Create a directory called “/mydata” and “index.html” file under “mydata” directory.
apiVersion: v1
kind: PersistentVolume
metadata:
  name: pv-vol1
spec:
  capacity:
    storage: 1Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  storageClassName: ""
  hostPath:
    path: "/mydata"

As per above yaml, Volume configured at “/mydata” host directory with the size of 1Gi and an access mode of “ReadWriteOnce(RWO)

save above yaml content as "pv-vol1.yaml" and run the following kubectl command
// create persistentvolume(pv)
$ kubectl apply -f pv-vol1.yaml
persistentvolume/pv-vol1 created

// display pv
$ kubectl get pv
NAME     CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS
pv-vol1   1Gi        RWO            Retain          Available
Here, status showing "Available". It means, PV is not yet bound to a PersistentVolumeClaim (PVC)

Next step is to create persistentvolumeclaim(pvc) to request physical storage for the pod
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: pvc-vol-1
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 500Mi
  storageClassName: ""

save above yaml content as "pvc-vol-1.yaml" and run the following kubectl command
// create pvc
$ kubectl apply -f pvc-vol-1.yaml
persistentvolumeclaim/pvc-vol-1 created

// display pvc
$ kubectl get pvc
NAME        STATUS   VOLUME   CAPACITY   ACCESS MODES
pvc-vol-1   Bound    pv-vol1   1Gi        RWO
Here, PersistentVolumeClaim is bound to PersistentVolume i.e. pv-vol1

Next step is to create a pod to use persistentvolumeclaim as a volume
apiVersion: v1
kind: Pod
metadata:
  name: pod-pv-pvc
spec:
  containers:
    - name: nginx
      image: nginx:alpine
      ports:
        - containerPort: 80
          protocol: TCP
      volumeMounts:
        - name: pod-pv-vol
          mountPath: /usr/share/nginx/html
  volumes:
    - name: pod-pv-vol
      persistentVolumeClaim:
        claimName: pvc-vol-1

save above yaml content as "pod-pv-pvc.yaml" and run the following kubectl command
// create pod
$ kubectl apply -f pod-pv-pvc.yaml
pod/pod-pv-pvc created

// display pods
$ kubectl get po
NAME             READY   STATUS      RESTARTS   AGE
pod-pv-pvc        1/1     Running     0          1m

run the following kubectl command to forward a port from local machine to the pod
// syntax
// kubectl port-forward <pod-name> <local-port>:<container-port>
$ kubectl port-forward pod-pv-pvc 8081:80
Forwarding from 127.0.0.1:8081 -> 80
Forwarding from [::1]:8081 -> 80

$ curl http://localhost:8081
text message text Tue Nov  16 12:01:10 UTC 2021

We have successfully configured a Pod to use PersistentVolumeClaim as physical storage.

run the following kubectl commands to delete the resources
$ kubectl delete pod pod-pv-pvc
$ kubectl delete pvc pvc-vol-1
$ kubectl delete pv pv-vol1


Kubernetes for Developers Journey.
Happy Coding :)
